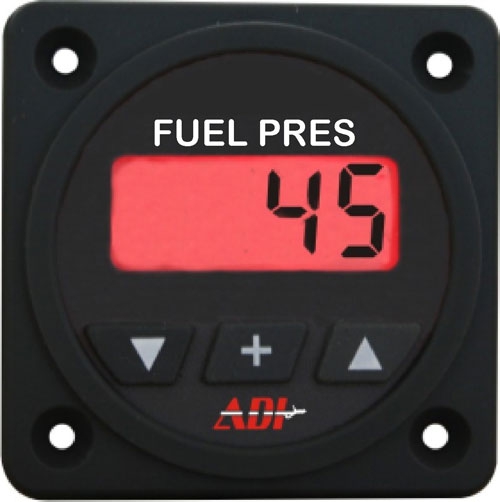

ADI F60 FPR FUEL PRESSURE GAUGE 4-20MA

The F60-FPR can be specifically used with the ROTAX 912S/ 914 series engine with the Mechanical Fuel Pump, in conjunction with a F60-FPT (0-15PSI Fuel Pressure Transducer) LOW and HIGH pressure alarms can be set over the entire range. When activated, the built-in 85dB alarm will sound and the display will flash. Five different levels of internal backlighting can be selected, then all setup and alarm values are saved to a nonvolatile memory. The External Alarm output on Terminal "C" can be programmed to activate an annunciator warning light, such as "LOW or HIGH PRESSURE" or to control one of our ER-1A remote relays.

Specifications

• Power Supply: 9.5-33.0 VDC (.018 amp nominal)
• Operating Temp: 32-122F(0-50C)
• Size/ Weight: 2.475" square, low profile...easily stackable bezel, with standard aviation 2.250" raised round ring. Standard 2.625" diameter mounting hole layout at 45 degrees. Proprietary unique bezel design allows user the option of either front or rear mounting our gauges in their panel. Gauge depth behind panel: surface mounted approx. 2.60", rear mounted, approx. 2.90". Weight approx 2.3oz.
• Accuracy: Limited only by sender accuracy.
• Senders: Works with the F60-FPT ( 0-15 PSI Fuel Pressure Transducer ) for use with ROTAX 912S / 914 Series with the Mechanical Fuel Pump.
• Alarms: 85dB internal LOW and HIGH level alarms, settable from 000.0 to 6553. External alarm output (5V,10mA(max)
• Display: 4 digits 000.0 to 6553. Five levels of backlighting.
• Output: Terminal C can be used as an External Alarm signal,(5V, 10mA) for a LED warning light... or as a control signal for an ER-1A relay.
