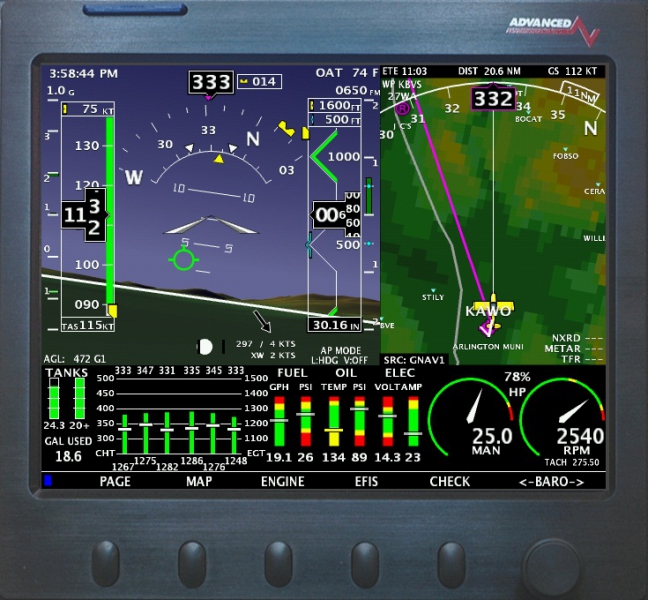

ADVANCED AF-3500EM EMS 8.4"

The ultimate panel buiding blocks, the Advanced Flight Systems AF-3400s and 3500s can be configured as an EFIS (EF), Engine Monitor (EM), or Combination (EE) or both with the appropriate hardware modules installed. Both the AF-3400 and AF-3500 systems utilize our Advanced Avionics Bus allowing the pilot and copilot displays to exchange screens. The AF3400s/3500s are powered by a state-of-the-art certified Crossbow AHRS engine. Choose a 6.5" AF-3400s or 8.4" AF-3500s sunlight readable color LCD display that is 50% brighter than any competitor.

• EFIS - Unlike other systems our horizon display is generated from an internal Crossbow AHRS that is based on certified boards and software. Our display features a clear and easy to read airspeed indication with user adjustable color ranges, the altimeter is set using a familiar and convenient adjustment knob (other systems require numerous buttons presses), and our heading display is generated from a remote mounted magnetometer. The heading can be displayed on a tape across the top or with our new EFIS DG©. Other flight instruments functions include a slip ball and user-configurable g-meter.
• Aircraft Monitoring and Data Acquisition System - Developed from our successful AF-2500 monitor, the system continuously monitors and displays not only all aircraft engine data but several other aircraft functions as well. Unlike other systems, the display can be customized to the user's preference. Any of the standard instruments can be eliminated or added to the screen.
• Mapping - An optional feature, your AF-3400s/3500s can now be configured with onboard mapping. Position is derived from an outboard GPS signal and displayed on the screen. Several display page options can be selected.
• AOA - Fly safe with AOA! Our patented AOA module can be purchased to drive the display on the AF-3400s/3500s screen.

Check the functionality our systems provide, you'll eliminate a surprising number of conventional instruments thus saving weight, precious panel space, and cost. And we're compatible — the AF3400s/3500s supports communication with Chelton, Aerosance FADEC, and OP Technologies to name a few. New functionality is being added all the time, be sure and check with us if there is a special configuration you need. Perhaps best of all, connect any of our screens together to exchange data and create a two or more screen solution for your panel. In all, the AF-3400s/3500s provide the most flexibility in configuring your system and the most customizable user options once installed.
