AIRCRAFT WINGTIP NAV LIGHT 7.5W-A-1512

Part number:

11-11375

53.93 EUR

incl. 19% VAT, excl. shipping

Expected shipping date is Wednesday 09 October if you order before 16:00 Wednesday 02 October. This information is valid for up to 1 EA

Available Quantities:

In 9 days:

1 EA

Description:

Note: For Experimental aircraft use only. Not FAA/PMA Approved.

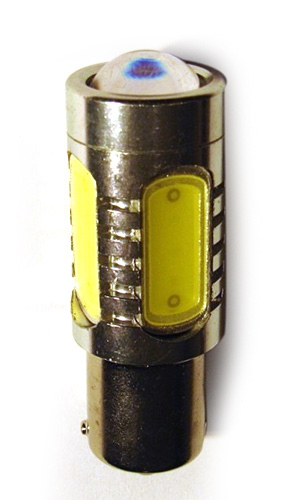

NavStrobe Aircraft Wingtip Nav Light 7.5W-A-1512

Rapco Equivalent: 1512,1524,7079B-12,7079B-24,7512-12,7512-24

Emitter Type: Cree LED's

Total Emitters: 10
Power: 7.5W
Color BIN: White

Rated Voltage: 8-30VDC

Draws <225ma @ 14.2VDC
Luminous Flux: 13550LM (0 degrees), 836LM (90 degrees)
Color Temperature: 6000~6500K
2 modes: constant & fast strobe
Base Type: BAY15s = Single contact and single offset pin. (A-1512)
Application: Wingtip Navigation Light replacement.
Contains 1 light bulb per pack

Dimensions: 2.0 in x 0.7 in (52 mm x 1.8 cm)
Weight: 0.32 oz (9 g)

Turn on first: Constant lighting / Turn on second time <3s: Fast Strobe. Switch between modes in fog/cloud etc

Q+A:

Are these legal as direct replacements for a certificated aircraft? Is paperwork necessary to be legal, or just a logbook entry by owner?
No, at this time these are not FAA Approved for use in certified aircraft. A 337 field approval would be necessary for installation.

Do these Navstrobe LED wingtip nav lights come in Red and Green or are they designed to work behind colored lenses?
These are designed to work behind colored lenses. All Navstrobe products except the Sextant product (our part # 11-11987) are designed to operate behind the existing colored lens.

Unit	EA
Hazardous	No
Oversize	No
Weight	0.145 kg
