Part number: | 10-04809 |

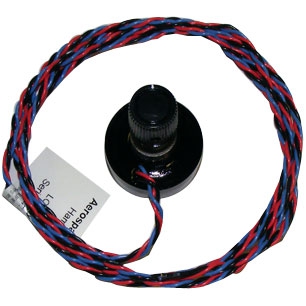

The A200-DDC Intensity Controller will support up to ten instruments in a single installation. It provides infinitely variable, uniform intensity control for all instruments.
These units are TSO qualified with all 200 Series instruments and is STC'd as a primary replacement instrument component under all flight conditions (day/night VFR and IFR).
Certification / Compliance TSO (various per instrument):
Canadian STC
FAA STC
Certified as primary replacement
DC Power Source:
Input voltage 6 to 36 VDC
Power consumption 250mA (maximum brightness)
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Specifications
- Signal Output: 10.2V to 13.6V with 6.0V to 36V inputUnit | EA |
Hazardous | No |
Oversize | No |
Weight | 0.227 kg |
