Bolt Undrilled AN6-75A
| Part number: | AN6-75A |
AN6 Cad Plated
Drilled
AN6 Cad Plated
Undrilled
AN6C Stainless
Drilled
AN6C Stainless
Undrilled

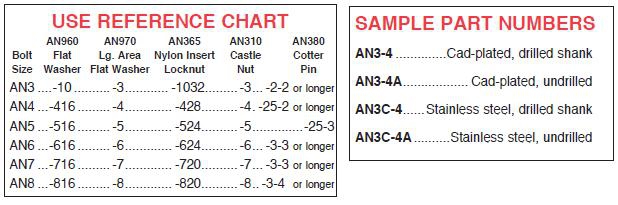

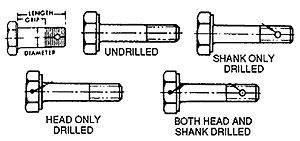

Hex head aircraft bolts are made of high-strength type 4037 or 8740 alloy steel (type 8740 is most commonly used). The bolts are centerless ground and threaded after heat treatment. Minimum tensile strength 125,000 PSI. Cadmium plated per specification QQ-P-416A, Type II, Class 3. Available with shank drilled for cotter pin or undrilled for stop nut application, and with or without drilled head for safety wire. Specify bolts to have undrilled shank by adding letter "A" after the dash number. For bolts with drilled head add letter "H" after the AN number. See illustrated examples. The length of AN aircraft bolts is measured from under the head to the end of the shank. The "grip" is the unthreaded portion of the shank. See table for conversion of length and/or grip to proper AN callout.
Note: Drilled bolts listed above are drilled shank only.
| Dash No. | Nominal Length |
Grip Length |
| -4 | 19/32 | 1/16 |
| -5 | 23/32 | 1/16 |
| -6 | 27/32 | 3/16 |
| -7 | 31/32 | 5/16 |
| -10 | 1-3/32 | 7/16 |
| -11 | 1-7/32 | 9/16 |
| -12 | 1-11/32 | 11/16 |
| -13 | 1-15/32 | 13/16 |
| -14 | 1-19/32 | 15/16 |
| -15 | 1-23/32 | 1-1/16 |
| -16 | 1-27/32 | 1-3/16 |
| -17 | 1-31/32 | 1-5/16 |
| -20 | 2-3/32 | 1-7/16 |
| -21 | 2-7/32 | 1-9/16 |
| -22 | 2-11/32 | 1-11/16 |
| -23 | 2-15/32 | 1-13/16 |
| -24 | 2-19/32 | 1-15/16 |
| -25 | 2-23/32 | 2-1/16 |
| -26 | 2-27/32 | 2-3/16 |
| -27 | 2-31/32 | 2-5/16 |
| -30 | 3-3/32 | 2-7/16 |
| -31 | 3-7/32 | 2-9/16 |
| -32 | 3-11/32 | 2-11/16 |
| -33 | 3-15/32 | 2-13/16 |
| -34 | 3-19/32 | 2-15/16 |
| -35 | 3-23/32 | 3-1/16 |
| -36 | 3-27/32 | 3-3/16 |
| -37 | 3-31/32 | 3-5/16 |
| -40 | 4-3/32 | 3-7/16 |
| -41 | 4-7/32 | 3-9/16 |
| -42 | 4-11/32 | 3-11/16 |
| -43 | 4-15/32 | 3-13/16 |
| -44 | 4-19/32 | 3-15/16 |
| -45 | 4-23/32 | 4-1/16 |
| -46 | 4-27/32 | 4-3/16 |
| -47 | 4-31/32 | 4-5/16 |
| -50 | 5-3/32 | 4-7/16 |
| -51 | 5-7/32 | 4-9/16 |
| -52 | 5-11/32 | 4-11/16 |
| -53 | 5-15/32 | 4-13/16 |
| -54 | 5-19/32 | 4-15/16 |
| -55 | 5-23/32 | 5-1/16 |
| -56 | 5-27/32 | 5-3/16 |
| -57 | 5-31/32 | 5-5/16 |
| -60 | 6-3/32 | 5-7/16 |
Q+A
Can you provide an average weight for AN6-7A?
The average weight for quantity 1 of AN6-7A is 0.04 lbs.
Do the undrilled AN6 bolts listed here still have a hole through the bolt's head?
No, the undrilled bolts listed here have no holes. To find the bolts with drilled head only, keyword search " AN Bolt Selector " on our website. The first result will be a drop down selection page and you can choose the different drilled options for each bolt we carry.
| Unit | EA |
| Hazardous | No |
| Oversize | No |
| Weight | 0.116 kg |
| Alternative P/N | 07481-1 |
