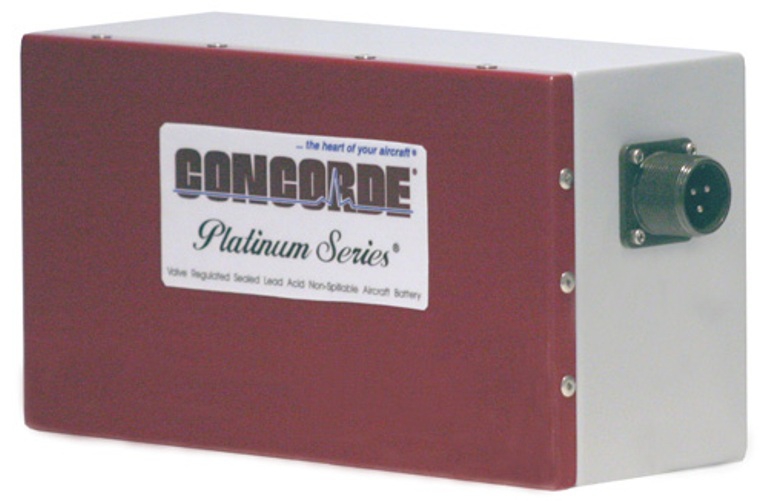

Concorde Sealed Battery RG-126

Avionics Battery for lighting, standby, emergency power. Protects and extends the life of other avionics. Concorde Emergency Batteries float directly on the DC buss with no need for a dedicated charger. This results in a high inrush current which extends battery life with fast recovery time from discharge. With the battery floating directly on the buss, transient spikes in the DC power are absorbed. These batteries are self regulating on charge and will take only the current required to maintain it at full charge.
Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.

• Maintenance free
• Constructed with non removable vent valves - no addition of electrolyte or water required
• Aerobatic: Non spillable at any altitude or attitude
• Factory tested to assure airworthiness
• Manufactured with absorbed glass mat separators (AGM)

• Primary Aircraft Purpose: Emergency Aircraft Battery
• Voltage: 24v
• Rated Capacity C1 = 1 hr. rate in ampere hours: 3.50
• Max Weight: 11.90 lb / 5.4 kg

• RG-126 Battery Outline Drawing (PDF)

• Click here to download BATTERY WARRANTY (PDF)
• Click here to download FAA-PMA Installation Eligibility List PDF
• Click here to download Storage and Boost Charge Recommendations PDF
• Click here to download Concorde Battery AS9100 Certificate of Registration
• Material Safety Data Sheets (Click on link to download PDF)

• Lead Acid Batteries

• Dry Charged Batteries
