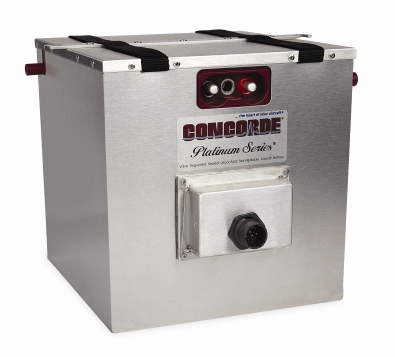

Concorde Sealed Battery RG-380E/44Lsh

Concorde recombinant gas (RG® Series) valve regulated lead acid (VRLA) batteries for engine starting, emergency / essential power, and standby power applications are constructed with cutting edge Absorbed Glass Mat (AGM) technology. Concorde’s proprietary PolyGuard™ Microporous Polyethylene Separator shields the positive plates against shorting, shock or vibration. No other manufacturer offers this dual layer insulation protection feature.

• Superior starting power
• Reliable essential power in the event of a generator failure
• Low impedance design
• Maintenance free
• Constructed with non removable vent valves - no addition of electrolyte or water required
• Internal AC Heater - 115VAC
• Internal DC Heater - 28VDC
• Aerobatic: Non spillable at any altitude or attitude
• Factory tested to assure airworthiness

• Primary Aircraft Purpose: Turbine Starting Aircraft Battery
• Voltage: 24v
• Rated Capacity C1 = 1 hr. rate in ampere hours: 42.00
• Max Weight: 92.00 lb / 42.0 kg

• RG-380E/44LSH Battery Outline Drawing (PDF)
• Click here to download BATTERY WARRANTY (PDF)
• Click here to download FAA-PMA Installation Eligibility List PDF
• Click here to download Storage and Boost Charge Recommendations PDF
• Click here to download Concorde Battery AS9100 Certificate of Registration
• Material Safety Data Sheets (Click on link to download PDF)

• Lead Acid Batteries

• Dry Charged Batteries
