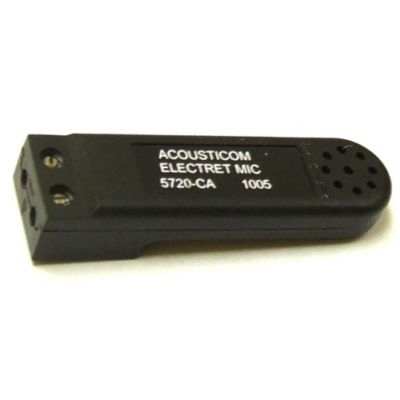

This microphone can be used with modern General Aviation Aircraft. This is a capacitor type microphone designed for use on a headband type headset or in use in a pressure type oxygen mask. The microphone is not waterproof and is intended to provide audio communications under high noise conditions found in military, civilian and general aviation aircraft.

The microphone is designed and constructed from quality durable high strength ABS plastic as well as corrosion resistant metals meeting or exceeding the environmental, durability and interchangeability requirements of RTCA/DO-214.

Fits all of David Clark Electret FLEX Boom Style Headsets

• Noise cancelling up to 25 db
• Replacement for David Clark Mic M-7A and M4
• Field Replacable
• Fits Flex Style Booms

• Color: Lusterless Black
• Weight: Approximately 4.5 to 6.0 grams
• Impedance: 150 ohms + / - 20 ohms
• Distortion: 6% @ 114dB
• Frequency response: 100Hz to 10,000Hz
• Sensitivity at ground level: 86dB - 98dB @ 1.0 kHz / 94dB input
• Temperature range: -55C to +85C
• Noise canceling: Min 15dB Max 25dB
• Altitude compensation: 25,000ft
• Supply voltage: 9-28V dc
