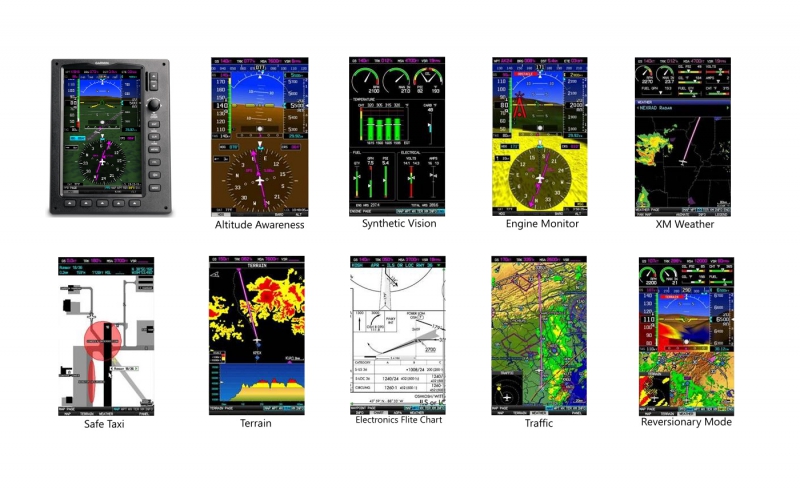

Designed around the GDU 370/375 series of panel-mount displays, the G3X suite provides an easy-to-install, non-TSOd option that lets you grow your system as your needs and budget dictate. For example, you can start with a single glass display that combines full primary flight (PFD) attitude/directional guidance with electronic engine monitoring and detailed moving-map multifunction (MFD) capabilities. Then, should you choose to expand your cockpit configuration, you can opt for separate PFD and MFD screens or even add a co-pilots flight display. A built-in network interface allows up to three displays to be interlinked in the panel, with full reversionary backup for added safety and redundancy.
Simplicity meets sophistication in the G3X flight deck. Using sophisticated graphics modeling, the integrated SVX synthetic vision technology provides a 3-D virtual reality perspective of what lies ahead. The system pulls together information from the built-in aviation basemap and terrain elevation database, letting you clearly visualize terrain features, obstacles, waterways and airport locations on the 7-inch high-definition display. By adding a GTX 330 Mode S transponder, your G3X display Traffic Information Service (TIS) alerts to help identify aircraft in your proximity. The system can also be coupled with the TruTrak GX Pilot autopilot system to provide sophisticated flight control modes including altitude preselect and capture, heading hold and GPS as well as ILS navigation. The autopilot can even be used to fly WAAS approaches when used in conjunction with a GNS 400W/500W series unit.
In addition to its detailed terrain map, the G3X system comes preloaded with geo-referenced Garmin FliteCharts®, which displays a graphical representation of your aircraft overlaid directly onto NACO-format IFR approach plates. FliteCharts also allows you to easily find and view all U.S. AeroNav Services, standard terminal arrival routes (STARs) and more. For pilots who prefer Jeppesen charts and diagrams, Garmin also offers ChartView, which utilizes Jeppesens extensive library to provide global geo-referenced charting capabilities (unlock card plus subscription is extra). The Garmin SafeTaxi® service is also built-in, providing geo-referenced diagrams for over 900 U.S. airports. Plus, AOPA Airport Directory data puts detailed information on more than 7,400 U.S. Airports right at your fingertips.
The G3X system uses the latest in GPS-aided digital ADAHRS (Air Data and Attitude Heading and Reference Systems). Leveraging solid-state sensors and sophisticated attitude determination and integrity monitoring algorithms used in Garmins high-end G1000 system, the G3Xs ADAHRS provides highly accurate and reliable referencing of your aircraft position, rate, vector and acceleration data. Better still, the complete sensor package ADAHRS and EIS engine monitoring, plus magnetometer and temperature probe takes up just a fraction of the space and weight previously required by conventional gyro-based instrument systems.
All harnesses include wiring for dual screen GDU 375 and/or GDU 370, GSU 73, GMU 44 and includes a full harness for engine probes/sensors.
IFR harnesses are pre-equipped for the GNS 430W, SL 30, SL 40, GMA 240, GTX 327, GTX 330. VFR Harnesses are pre-equipped for the SL 40, GTX 327, GMA 240.
Steps | Garmin # | Description | Part No. |
1. Pick Your System | K10-00016-05 | Single Screen System GDU 370 No Engine (EIS) | 11-12064 |
-- | K10-00016-06 | Single Screen System GDU 375 No Engine (EIS) | 11-12068 |
-- | K10-00016-10 | Single Screen System GDU 370 | 11-11426 |
-- | K10-00016-15 | Single Screen System GDU 375 | 11-11429 |
-- | K10-00016-20 | Dual Screen System - GDU 370 | 11-11427 |
-- | K10-00016-25 | Dual Screen System - GDU 375/370 | 11-11430 |
-- | K10-00016-30 | Triple Screen System - GDU 370 | 11-11428 |
-- | K10-00016-35 | Triple Screen System - GDU 370/375/370 | 11-11431 |
Connector Kit | K10-00181-00 | GSU 25 ADAHRS Connector Kit | 11-11433 |
-- | 011-02886-00 | GEA 24 Engine Module Connector Kit | 11-11434 |
-- | 011-00871-10 | GMU 22 Install Kit | 11-12213 |
2. Select Antenna(s) | 010-11373-00 | GA 26 XM (remote dash mount) Antenna | 11-09466 |
-- | 010-10052-04 | GA 26C GPS (remote dash mount) Antenna Kit | 11-00051 |
-- | 010-11370-10 | GA 57X GPS/SM (external mount) Antenna | 11-09467 |
3. Add Engine Probe Package | K00-00512-00 | 4 Cylinder Lyc/Cont Probe Kit | 11-09469 |
-- | K00-00513-00* | 6 Cylinder Lyc/Cont Probe Kit | 11-09474 |
-- | K00-00514-00** | Rotax 912 Probe Kit | 11-09476 |
-- | 494-30004-02 | Fuel Pressure (Injected), 50 PSIG, 1/8-27 NPT | 11-09477 |
-- | 494-30004-03 | Fuel Pressure (Carbureted) / Coolant Pressure, | 11-09478 |
-- | 494-10001-00 | Fuel Flow, 1/4" Female NPT | 11-09479 |
-- | 494-50005-00 | RPM, Hall Effect, Slick magneto | 11-09480 |
-- | 494-50005-01 | RPM, Hall Effect, Bendix magneto | 11-09481 |
-- | 909-D0000-00 | Ammeter, Shunt, +/-50 mV, 100 amps | 11-09482 |
-- | 494-70002-00 | TIT, Type K thermocouple, 7/16-20, bayonet | 11-09483 |
-- | 494-70005-00 | Carb Temp, RTD, 1/4-28 | 11-09484 |
4. Add Transponder for Remote Mode S (Optional) | GTX 23 | Remote Mount GTX 23 Mode S Transponder | 11-10001 |
5. Add Autopilot | GSA 28 | GSA 28 Single Autopilot Servo | 11-11450 |
-- | 011-02950-000 | GSA 28 Connector Kit | 11-12171 |
-- | 010-01068-00 | GSA 28 Capstan Kit | 11-11436 |
-- | 011-02952-00 | GSA 28 Servo Install Kit Without Mount Bracket | 11-11437 |
-- | 011-02952-01 | GSA 28 Servo Install Kit Wit Mount Bracket | 11-11438 |
RV Aircraft Servo Packages | 011-02952-10 | GSA 28 Servo Install Kit for RV 6 Roll | 11-11440 |
-- | 011-02952-11 | GSA 28 Servo Install Kit for RV 4 & 8 Pitch | 11-11441 |
-- | 011-02952-12 | GSA 28 Servo Install Kit for RV 7, 8 & 10 Roll | 11-11442 |
-- | 011-02952-13 | GSA 28 Servo Install Kit for RV 9 Roll | 11-11443 |
-- | 011-02952-14 | GSA 28 Servo Install Kit for RV 6, 7 & 9 Pitch | 11-11444 |
-- | 011-02952-15 | GSA 28 Servo Install Kit for RV 10 Pitch | 11-11445 |
6. Add Autopilot Control Panel | 010-01169-00 | GMC 305 Autopilot Control Panel | 11-11446 |
-- | 010-12034-00 | GMC 305 Install Kit | 11-11447 |
7. Add ADS-B Weather | -- | GDL 39 Portable ADS-B Receiver With Bare Wire Cable | 11-10730 |
8. Add Pitot Tube & AOA | 010-01074-00 | GAP 26 Unheated Pitot Tube | 11-11448 |
-- | 010-01074-10 | GAP 26 Heated Pitot Tube | 11-11449 |
-- | -- | PBK-12 PAINTABLE GRETZ BRACKET | 10-01820 |
-- | GI 206 Angle of Attack Indicator | 11-12536 | |
9. ARINC Interface | 010-01172-00 | GAD 29 ARINC Interface | 11-11454 |
-- | 011-03271-00 | GAD 29 Connector Kit | 11-11455 |
10. Pick Wire Harness | -- | G3X VFR Harness EFIS/EMS 4CYL CON/LYC | 11-09485 |
-- | -- | G3X IFR Harness EFIS/EMS 4CYL CON/LYC | 11-09486 |
-- | -- | G3X VFR Harness EFIS/EMS 6CYL CON/LYC | 11-09487 |
-- | -- | G3X IFR Harness EFIS/EMS 6CYL CON/LYC | 11-09488 |
-- | -- | G3X VFR Harness EFIS/EMS Rotax | 11-09489 |
-- | -- | G3X IFR Harness EFIS/EMS Rotax | 11-09490 |
-- | -- | G3X VFR No Engine Data Harness | 11-09709 |
-- | -- | G3X IFR No Engine Data Harness | 11-11293 |
-- | -- | G3X Screen Add-On Harness | 11-12273 |
-- | -- | Garmin G3X Auto Pilot Harness | 11-11294 |
Unit | EA |
Hazardous | No |
Oversize | No |
Weight | 1.361 kg |
