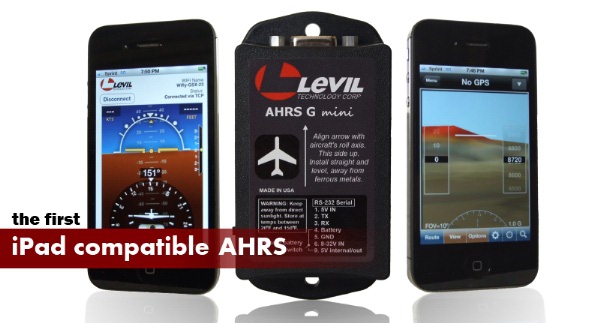

LEVIL SW AHRS G MINI

Part number:

11-11307

791.43 EUR

incl. 19% VAT, excl. shipping

Available Quantities:

unknown

Description:

The AHRS-G mini is a battery powered attitude and heading reference system that provides pitch and bank information as well as magnetic heading, inclination, gravity load and yaw rate wirelessly to your portable device. Unlike the gyros inside your iPad or other similar systems, the AHRS-G mini is the only AHRS system that guarantees a Zero drift per hour rating. Meaning there is no calibration required at any point. Just set it on a level surface and you can count on an accurate horizon for the rest of the flight.

There are 2 models available, AHRS-G mini AW includes an air data computer which can be attached to the pitot static system of the aircraft. Note: Certified General Aviation aircraft are not allowed to modify their pitot static system, therefore model SW is recommended.

How it Works:
Just use the internal battery (good for 7 hours, recharges through mini USB port) or Use the mini-usb port to apply constant voltage (i.e from the cigarette lighter receptacle) or Apply 8-32V airplane power through the RS232 connector (i.e Experimental airplanes)

Sync
Connect your device to the AHRS' Wifi network (i.e iPhone/iPad users) and/or Connect AHRS to your portable device via USB (i.e HP tablet PC) and/or Connect AHRS to your panel mounted device through the RS-232 port or Connect AHRS to another hardware and let them channel the information to the iPad (i.e SkyRadar ADS-B receiver)

Fly
Pick a software that is compatible with the AHRS on your portable or panel-mounted device and enjoy primary flight information at your fingertips!

Operating Voltage 5V and 8-32V
Running Current 0.29 Amps at 5V
Operating Temperature 0-70 Celsius (32-158 F)
Dimensions 4" x 2" x 1"
Weight 5oz
Max rate of turn 200 deg/sec
Output serial USB, Wi-fi and RS232
AHRS structure 3 MEMs gyros, 3-axis accelerometer, 3-axis magnetometer
Cycle scan 13 Hz for AHRS, 2Hz for air data
Static-Dynamic P Input for AW model only! 1/8" NPT hose connectors required
Battery USB rechargeable, lasts up to 7 hours when fully charged

Unit	EA
Hazardous	No
Oversize	No
Weight	0.181 kg
