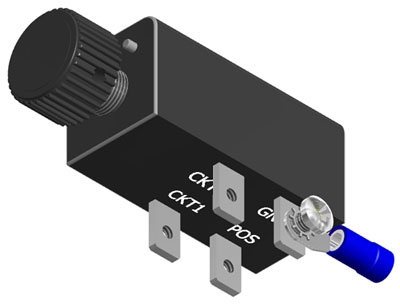

Microdim Dual Dimmer 9100-001-J from Aircraft Spruce Europe

Microdim Dual Dimmer 9100-001-J

Part number:

11-11887

491.52 EUR

incl. 19% VAT, excl. shipping

Expected shipping date is Wednesday 07 May if you order before 16:00 Wednesday 30 April. This information is valid for up to 1 EA

Available Quantities:

In 11 days:

1 EA

Description:

5 to 35 VDC, 0-7.5 A per channel, Control over 224 Watts per channel in a .9" Inch square by 1.9" Package.

Complete compact, light weight, powerful, solid state Dimmer and switch controller.

Microdim Dual Dimmer Revision SWP has all the functions you will need. Dimming on one channel and switching on channel 2 for the position lights/navigation lighting is activated any time there is output on the dimming channel.

Voltage Range: 5VDC to 35VDC
Max Current: 7.5 A per channel
Controlled Output: 5-35 VDC, 0 to 7.5 A, per channel
Two channel units, 1 dimming, 1 switched
Capacity:
- 37.5 Watts @5 VDC each channel
- 90 Watts @12 VDC each channel
- 210 Watts @28 VDC each channel
- 262 Watts @35 VDC each channel
Install with Standard Supplied solderless ring lug terminal
Potentiometer Rotation: 270 degrees Rotational Life: 500K Turns
Operating Temperature Range: -30 degrees C to +65 degrees C
Internal temperature Protect: +85 degrees C
Storage Temperature: -40 degrees C to +100 degrees C
Maximum Internal Temperature: @15A +15 degrees C
Enclosure Material: Avantra 8731 polystyrene Meets UL 94
Flame Rating: Meets UL94V-0 (@ 0.062"/1.5 mm min.) rating
Conforms to RTCA/DO-160E SEC 21: RFE (EMI)
One Year limited warranty
Weight: 1.31 oz including knob

Dual Channel control of Lighting - P/N 9100-001-P Rev. SWP
one dimming channel and one +V switching channel.
Smallest all self contained Dimmer/switch Lighting control
For Dimming on one channel and control of other switched lighting, position/navigation, relays, egress lighting, etc.
No outboard heat sinks, boxes, rheostats, or other packages
RTCA/DO-160E SEC 21: RFE Qualified
Incandescent lights, LED landing lights, HID
UMA dimmer, EL, LED Glare shields, overheads, Avion Glare shield dimmer
Low level LED lighting suitable for NVG
Hundreds of DC Lighting Control applications
Assembled Totally in the USA.

MaxDim Micro unit
Installation instructions
Color coded terminals

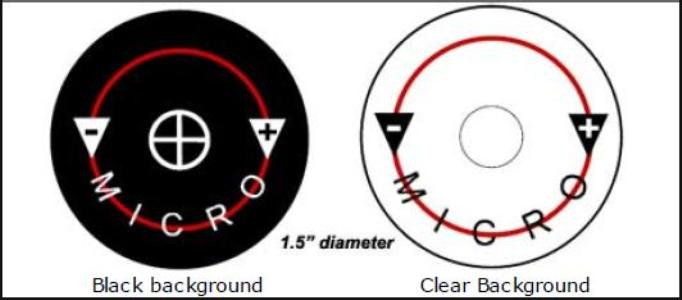

Reference panel label
Knob/s

Unit	EA
Hazardous	No
Oversize	No
Weight	1.452 kg
Manufacturer
Manufacturer P/N
GTIN
Core Charge	Yes (add to cart to see price)
110V device	Yes
