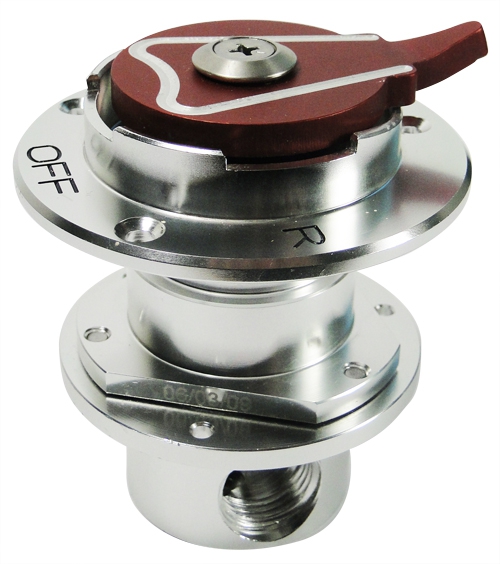

Sprl 3 Way Fuel Valve

Part number:

05-04450

285.70 EUR

incl. 19% VAT, excl. shipping

Available Quantities:

unknown

Description:

After a long development process, here's a completely new family of Fuel Valves. Hi-Tech Seals give easy operation and are suitable for all current fuels. The simplicity promises a long reliable life.
The SPRL-V1 is a three/four way fuel selector offering left-off-right and both if required. There are 90 degrees between selections and the absence of a lower fitting reduces the depth required.
These English fuel valves have some great features that make them better than the rest. Ceramic disks have no soft moving/rubbing seals to wear out, unlike other valves but also give an 'indefinite' life with a very smooth light action. The lift and turn selector is instinctive, secure, and easier to use than the complex 'lift button' type. The locking detents avoid accidental movements. The fixings match most installations, and the internal ports prevent cross feeds, unless 'selected to 'Both'. Male AN fittings enable you to plumb straight into the aeroplane system with no extra fittings to buy. The lightweight alloy construction is anodized for protection; the Viton 0 ring seals are suitable for all current fuels. For experimental aircraft only. Fittings must be purchased separately.
Please note that the accessories listed below are the the only compatible accessories; other standard accessories will not fit these valves.

AN6 MALE FITTINGS SPRL (PACK OF 3) 05-04452 AN8 MALE FITTINGS SPRL (PACK OF 3) 05-04453 NPT 1/4" FEMALE FITTINGS SPRL (PACK OF 3) 05-04454 NPT 3/8" FEMALE FITTINGS SPRL (PACK OF 3) 05-04455

Reviews:

by Victor Menkal
12/29/2013

Awesome piece of engineering! Operates very smoothly with a good positive selector lock at indent positions.

The standard AN fittings saved a lot of money as compared to other fuel selectors and also allowed installation in very tight space without need for selector handle extension or other complicated modifications.

Also received excellent and friendly support from manufacturer. Thank you!

Q+A:

I want to be confirmed if this NEWTON SPRL VI-4P WAY FUEL VALVE has 4 positions. One closed-all tanks(off), one left tank open (only), one position both (left and right tank simultaneously open) and one position right tank open. Is this correct?
Yes, this is the correct description of the 4-way valve, part # 05-04451. Off, Left Only, Right Only, and Both.

Unit	EA
Hazardous	No
Oversize	No
Weight	0.249 kg
Manufacturer
Manufacturer P/N
GTIN
Core Charge	Yes (add to cart to see price)
110V device	Yes
