Single Stud Cargo Fittings — These fittings are normally used in strap and net applications to attach to track and anchor plates. Fits aircraft seat track with the track cross section per MS33601, narrow profi le aircraft track and 40000 anchor plates. The fitting is easily inserted into and removed from the track by simply lifting the spring-loaded retainer and sliding the fitting in the track. Studs are heat treated steel alloy, retainers are cast steel, rings and springs are stainless steel. Other styles may be available on special request and may be subject to minimums.

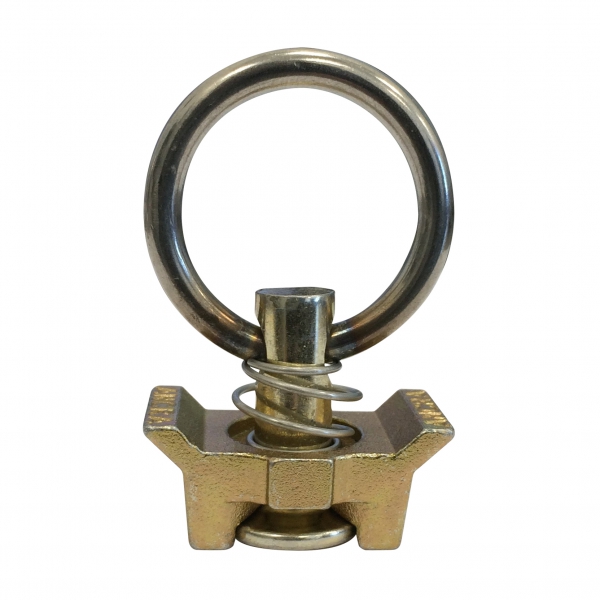

40340-20 Single Stud Fitting w/Round Ring Specifications:

Meets RoHS and "Green Airplane" requirements for environmentally friendly materials. Finish: Zinc electroplate with Trivalent chromate topcoat.

• Ring Diameter: 1.12 Inch
