ANGEROLE INSTRUMENT PANEL MNT 2-1/4

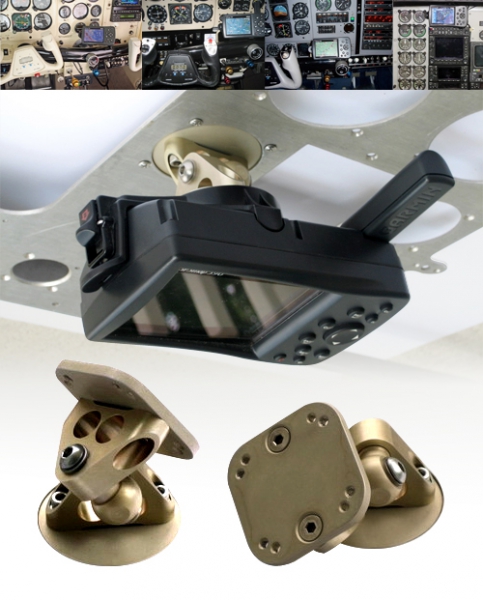

The photo above shows the Model 241 040 fitted to a blank instrument panel. An adaptor plate (included with the mount) fits any standard 2 ¼" instrument panel hole so, generally, it can be fitted without any modifications to your airplane. If your application needs it, we can supply this mount with a 3 ⅛" panel adaptor plate.

If you don't have an unused panel hole, a viable alternative is to drill two holes and simply bolt the mount directly to your panel. The "footprint" area is only 2" x 0.5" so there's probably going to be somewhere you can make it fit. Naturally, you need to be certain this is appropriate, sensible and legal for your installation before drilling holes in your airplane.

Download the Installation Notes PDF

Download the Complete Assembly Parts PDF

Download the Installation Drawing PDF
