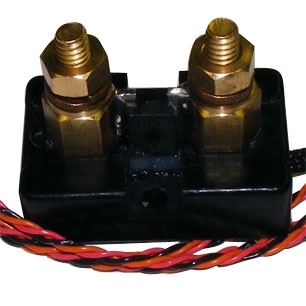

Aerospace Logic Hall Effect Current Shunt A200-Has

Part number:

10-04808

Aerospace Logic Hall Effect Current Shunt A200-Has

338.09 EUR

incl. 19% VAT, excl. shipping

Available Quantities:

unknown

Description:

The A200-HAS is an economical and precise solution for DC current measurement in electrical systems up to +/- 100A in capacity.
The output of the device has a positive slope (Vcc / 2) when an increasing current flows through the primary copper conduction path. The internal resistance of this conductive path is 130 µO typical, providing low power loss.
The thickness of the copper conductor allows survival of the device at up to 5× overcurrent conditions. The terminals of the conductive path are electrically isolated from the sensor leads and provide a minimum isolation of 3,000V.

Supplied with a 48" color coded cable.

Specifications

Current sense response time is 3uS.
Power requirements are 3V @ 10mA. Signal output is linear and varies from 0.0(-100A) to 3.0V (+100). Zero current is represented by 1.5V.
The sensor has two 1/4" terminal posts for connection to the power bus.

Unit	EA
Hazardous	No
Oversize	Yes
Weight	0.091 kg
Manufacturer
Manufacturer P/N
GTIN
Core Charge	Yes (add to cart to see price)
110V device	Yes
