Aircraft Wingtip Nav Light 4W-A-1512

Part number:

11-11369

40.51 EUR

incl. 19% VAT, excl. shipping

Expected shipping date is Wednesday 09 October if you order before 16:00 Wednesday 02 October. This information is valid for up to 21 EA

Available Quantities:

In 9 days:

21 EA

Description:

Note: For Experimental aircraft use only. Not FAA/PMA Approved.

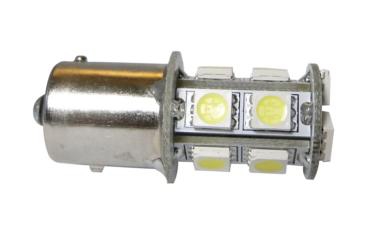

NavStrobe Aircraft Wingtip Nav Light 4W-A-1512

Rapco Equivalent: 1512,7079B-12,7512-12

Emitter Type: SMD 5050

Total Emitters: 13
Power: 4W
Color BIN: White

Rated Voltage: 8-15VDC

Draws <400ma @ 14.2VDC
Luminous Flux: 1310LM (0 degrees), 520LM (90 degrees)
Color Temperature: 6000~6500K
2 modes: constant & fast strobe
Base Type: BAY15s = Single contact with single pin. (A-1512)
Application: Wingtip Navigation Light replacement.
Contains 1 light bulb per pack

Dimensions: 1.73 in x 0.60 in (4.4 cm x 1.5 cm)
Weight: 0.32 oz (9 g)

Turn on first: Constant lighting / Turn on second time <3s: Fast Strobe. Switch between modes in fog/cloud etc

Q+A

How do you switch between steady and flash mode? Do these just plug in to existing sockets?
You got it. They install in to the current socket, and when turned on they stay constant on, then if the navlight switch is turned off and on again, the bulbs will strobe.

Unit	EA
Hazardous	No
Oversize	No
Weight	0.145 kg
