Andair Fuel Valve FS20X4M

There are two main categories of valves that are produced by Andair.

The Standard range incorporates the 3/8"(FS20) and the 1/2"(FS25) Selector Valves. These valves allow for multiple tank switching of one fuel line.

The other type is the Duplex valve. These units have two separate compartments that allow for two fuel lines to be switched simultaneously. These valves are used for fuel injected engines that require the fuel to be returned to the tank from which it was drawn from.

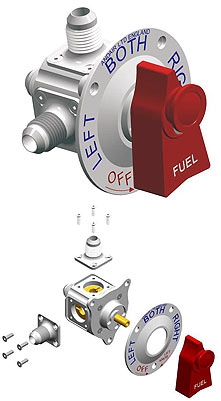

Each fuel selector has some great features that make it different from the rest. To begin with, the valve operates using a brass ball valve that is highly polished before assembly, then a PTFE gland is packed against it. The feel of the valve is very smooth. Click for exploded view of seal assembly. A number of design features allow a positive selection action. There is a large red ever with 'Fuel' engraved on it and a clearly labelled fascia plate to indicate which tank has been selected. The lever also incorporates a safety detent mechanism. This feature acts in two ways. It allows for a good solid detent at each tank position and also the button on top of the lever must be raised to switch the fuel off. All these features help prevent the pilot switching the wrong tank or turning the fuel off. Click for exploded view of lever assembly.

All of the valves produced can be supplied with a choice of fittings, an extension and even custom engraving.

Model: FS20X4M
Ports: Male

LEFT/BOTH/RIGHT/OFF (90 DEGREES ACTION BETWEEN EACH POSITION)
