Any side or end can be the top of the tank... You decide what fits best in your airplane! The smoke oil pump can be installed in any location on the top, side or end! The fill fitting, external fill fitting, vent fitting and suction fitting can be installed where you want them!

Features:

• Quick disconnect hardware for fast removal from your aircraft
• Everything you'll need for a complete installation
• Color coded - plug and play wiring
• Customized to fit at no extra cost
• Any oil tank dimension can be "up"
• Translucent oil tank for instant oil level reading
• Panel mount the mini 3 way switch and LED with the MIL spec label or use the supplied bracket to mount everything remotely!
• Pre-assembled and wired relay / breakers bracket with 1/8" holes drilled and rivets provided now for multiple installation options
• Oil pump mounts on any side, top or remote from oil tank
• Comprehensive instruction and operation manual
• Made with MIL spec parts
• Adjustable flow rate for peak performance

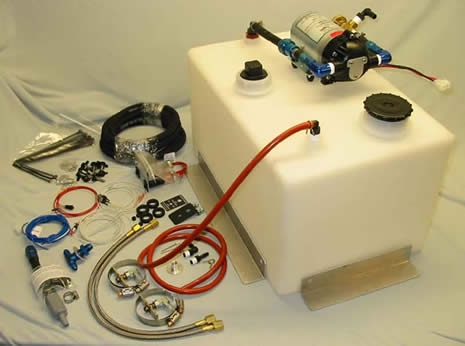

• Dimensions (in first picture above, add 1.75" at base of tank on sides and ends for bracket width):
  Height (to top of fill cap) = 14"
  Width (end where oil pump is mounted) = 11 1/2"
  Length = 18"

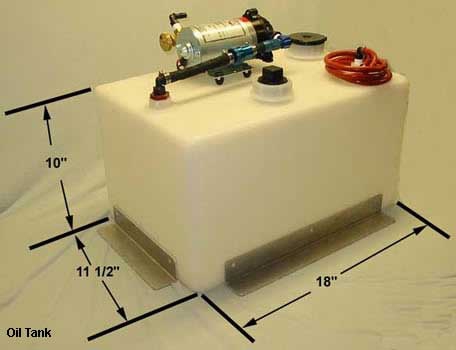

• Dimensions (tank only):
  Height: 10"
  Width="11-1/2"
  Length=18"
• Placard your airplane if this smoke system adversely effects the center of gravity or any other flight characteristic
• Specify 12 Volt DC or 24 Volt DC system when ordering
