Part number: | 02-24330 |
Not available for sale in Europe
In 11 days: | 8 SH |

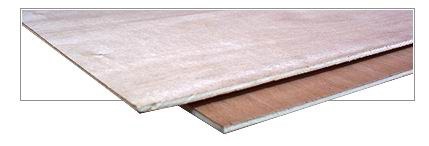

American-made structural aircraft-grade plywood is made of American Birch veneers laminated in a hot press to hardwood cores of Poplar or Bass wood with waterproof glue. Will meet all requirements of specification MIL-P-6070, which calls for shear testing after immersion in boiling water for 3 hours. Far superior to many plywoods in which all plies are 1/16 inch thick and laminated in a cold press to make up the total thickness. Tests should be made on cold press plywoods before use on aerobatic aircraft. Available in 45° and 90°
Attention
90° 2' x 4' Plywood are cut with grain.
If cross cut required, specify at time of order
Size | Degree | Part No. |
1/16x1x2 | 90° | 02-00040 |
1/16x2x4 | 90° | 02-24330 |
1/16x4x4 | 90° | 02-24310 |
1/16x2x8 | 90° | 02-24320 |
1/16x4x8 | 90° | 02-24380 |
3/32x2x4 | 90° | 02-24430 |
3/32x4x4 | 90° | 02-24410 |
3/32x2x8 | 90° | 02-24420 |
3/32x4x8 | 90° | 02-24480 |
1/8x2x4 | 90° | 02-24530 |
1/8x4x4 | 90° | 02-24510 |
1/8x2x8 | 90° | 02-24520 |
1/8x4x8 | 90° | 02-24580 |
3/16x1x2 | 90° | 02-00041 |
3/16x2x4 | 90° | 02-24630 |
3/16x4x4 | 90° | 02-24610 |
3/16x2x8 | 90° | 02-24620 |
3/16x4x8 | 90° | 02-24680 |
1/4x2x4 | 90° | 02-24730 |
1/4x4x4 | 90° | 02-24710 |
1/4x2x8 | 90° | 02-24720 |
1/4x4x8 | 90° | 02-24780 |
5/16x2x4 | 90° | 02-25130 |
5/16x4x4 | 90° | 02-25110 |
5/16x2x8 | 90° | 02-25120 |
5/16x4x8 | 90° | 02-25180 |
3/8x2x4 | 90° | 02-26630 |
3/8x4x4 | 90° | 02-26610 |
3/8x2x8 | 90° | 02-26620 |
3/8x4x8 | 90° | 02-26680 |
7/16x2x4 | 90° | 02-26730 |
7/16x2x8 | 90° | 02-26720 |
7/16x4x4 | 90° | 02-26710 |
7/16x4x8 | 90° | 02-26780 |
1/2x2x4 | 90° | 02-26030 |
1/2x4x4 | 90° | 02-26010 |
1/2x2x8 | 90° | 02-26020 |
1/2x4x8 | 90° | 02-26080 |
1/16x2x4 | 45° | 02-24830 |
1/16x4x4 | 45° | 02-24810 |
1/16x2x8 | 45° | 02-24820 |
1/16x4x8 | 45° | 02-24880 |
3/32x2x4 | 45° | 02-24930 |
3/32x4x4 | 45° | 02-24910 |
3/32x2x8 | 45° | 02-24920 |
3/32x4x8 | 45° | 02-24980 |
1/8x2x4 | 45° | 02-25030 |
1/8x4x4 | 45° | 02-25010 |
1/8x2x8 | 45° | 02-25020 |
1/8x4x8 | 45° | 02-25080 |
1/4x2x2 | 45° | 02-27120 |
1/4x4x4 | 45° | 02-27160 |
1/4x4x8 | 45° | 02-27180 |
Unit | SH |
Hazardous | No |
Oversize | Yes |
Weight | 1.369 kg |
