Part number: | 10-05431 |
Model Number | Description | Part Number |
CGR-30P-4-B | 4-Cylinder Basic Package with RPM, Fuel Flow, EGT/ CHT Bar Graph, Fuel Remaining, Volts, OAT, Tach Time, Local Time, Zulu Time, Flight Timer, Fuel Used for the Flight, Fuel Used Since Fill-up and all GPS/Fuel Flow Data. | 10-05428 |
CGR-30P-4-P | 4-Cylinder Premium Package with RPM, EGT/CHT Bar Graph, Fuel Remaining, Fuel Used, FPS/Fuel Flow Data, Engine Time, Tach Time, 5 Primary Functions of your choice and 5 Non-Primary functions of your choice. | 10-05429 |
CGR-30P-6-B | 6-Cylinder Basic Package with RPM, Fuel Flow, EGT/ CHT Bar Graph, Fuel Remaining, Volts, OAT, Tach Time, Local Time, Zulu Time, Flight Timer, Fuel Used for the Flight, Fuel Used Since Fill-up and all GPS/Fuel Flow Data. | 10-05430 |
CGR-30P-6-P | 6-Cylinder Premium Package with RPM, EGT/CHT Bar Graph, Fuel Remaining, Fuel Used, FPS/Fuel Flow Data, Engine Time, Tach Time, 5 Primary Functions of your choice and 5 Non-Primary functions of your choice. | 10-05431 |
CGR-30P Basic Package Marking and Configuration Requirements Form (PDF)
CGR-30P Premium Package Marking and Configuration Requirements Form (PDF)

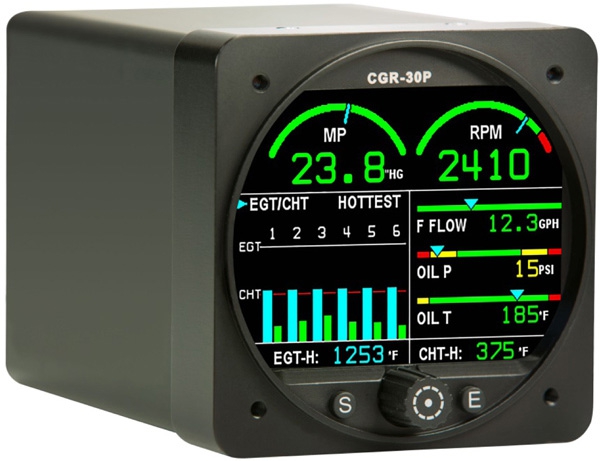

Easily replace several of your aircrafts primary and non-primary engine instruments
with one EI CGR For example, simply replace your existing tach with a CGR. In
addition to replacing our tachometer, the STCd CGR will replace MANY of your
existing primary and non-primary instruments in the same instrument, in the one
3-1/8 hole. The CGR mounts flush with your panel and doesnt protrude from your
panel (as competitors gauges do).
Available Functions:
The CGR-30P comes standard with a state-of-the-art, fullcolor bar graph which assists with ROP/LOP leaning. Additionally, the bar graph has both normalized and digital readout screens. No other bar graph in the industry comes close to providing the number of options the CGR-30P offers. In addition to its bar graph, the CGR-30P can be configured to display a combination of the functions listed below.
RPM |
Fuel Pressure |
Flight Timer |
Available Screens:
In addition to the Main Screen, the CGR-30P offers a Secondary Screen, a Fuel Quantity Screen and a GPS Data Screen. These additional screens give the CGR-30P flexibility not found in any other engine instrument.
Secondary Screen
This screen provides six additional
functions to be displayed on the
CGR-30P, as well as annunciators
to display Main Screen alerts.
GPS Data Screen
This screen allows you to select
between six sets of Fuel Flow,
Fuel Remaining and GPS
related data.
Fuel Quantity Screen
This screen displays the
estimated Fuel Remaining
for each tank, based on
current Fuel Flow.
Unit | EA |
Hazardous | No |
Oversize | No |
Weight | 4.536 kg |
