Flybaby Metals Kit

Part number: 01-00976
Flybaby Metals Kit
2580.29 EUR
incl. 19% VAT, excl. shipping
KI
please call
Available Quantities:
unknown
Oversize
Description:

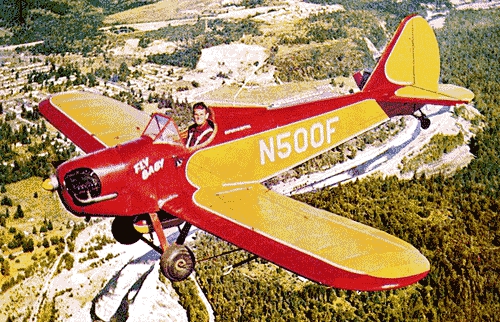

This plane is a structurally simple and easy-to-fly airplane designed to the requirements of the Experimental aircraft Association for home construction and storage in a space 7' x 8' x 20', which is equivalent to the standard home garage. Great emphasis has been placed upon safe flight characteristics and good low speed performance for takeoff and landing at some sacrifice of high speed.

The structure has been designed for standard airplane engines from 65 to 85 horsepower and the aerodynamic features are of sizes and proportions suited to obtaining the best allaround performance in this power range. Because of this, there is not enough advantage to be gained from using engines of significantly higher power to offset the cost and weight penalties. Increasing the power to increase the aerobatic capability is not recommended. FLY BABY will do simple recreational aerobatics very well but is not intended for rough air show or competition maneuvers. The plane can be built both as a biplane and as a monoplane.


Kit Content:

  • 1 03-00300-2 4130 STEEL TUBE 1/4X.035 2FT
  • 19 03-02400 4130 STEEL TUBE 1/2" X .035
  • 1 03-02900-2 4130 STEEL TUBE 1/2X.120 2FT
  • 8 03-03600-3 4130 STEEL TUBE 5/8X.035 3FT
  • 1 03-06400-3 4130 STEEL TUBE 1X.065 3FT
  • 1 03-06500-1 4130 STEEL TUBE 1X.095 1FT
  • 1 03-07900-1 4130 STEEL TUBE 1-1/4X.095 1FT
  • 1 03-17800-3 BRASS TUBE 1/2X3/8X.065 3FT
  • 0.5 03-18600-6 4130 STRIP 3/4 X 72" X .063
  • 0.5 03-19000-6 4130 STRIP 2" X 72" X .063
  • 3 03-22510 4130 SHEET .032 6" X 12"
  • 3 03-23500 4130 STEEL SHEET 9 X 18 X .063
  • 3 03-25500 4130 SHEET 18 X 18 X .125
  • 1 03-25660 4130 STEEL SHEET 9 X 9 X .190
  • 0.67 03-27910 2024T3 ALUM SHEET .025 4X12
  • 1 03-27920 2024T3 ALUM SHEET .025 4X8
  • 7 03-30850 2024T3 LEADING EDGE 18X144X016
  • 2 03-36700-1 6061T6 ALUM. TUBING 1X.058 1FT
  • 16 03-40400 3003-0 TUBE 1/4" OD X .032" W
UnitKI
HazardousNo
OversizeYes
Weight64.575 kg
