Grove Axle Shim 6201-4

Part number: 06-00932
Grove Axle Shim 6201-4
46.26 EUR
incl. 19% VAT, excl. shipping
EA
Delivery in 7 days
Expected shipping date is Wednesday 09 April if you order before 16:00 Wednesday 02 April. This information is valid for up to 1 EA
Available Quantities:
In 7 days:1 EA
Description:

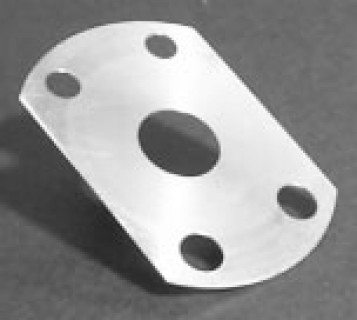

Adjust the vertical alignment of your wheels with these camber adjustment shims.


How to Select the Proper Axle Shim

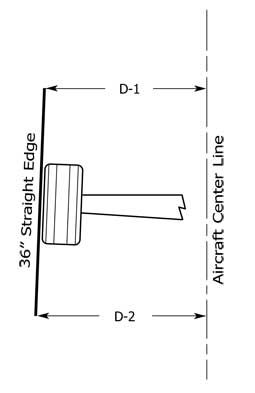

1. Support the aircraft in level flying attitude.

2. Chalkline the center-line of the aircraft onto the floor. Do this by connecting a mark on the floor from directly beneath the center of the firewall (use a plumb-bob) and from directly beneath the center of the tail (also using a plumb-bob).

3. Place a 36" straight edge against the outside of the tire. It should be parallel with the floor and approximately centered on the wheel.

4. Make a mark on the floor directly beneath each end of the 36" straight edge. Use a plumb-bob or square for this.

5. Measure and record distances D-1 and D-2. These are the distances between the marks in step 4 and the aircraft center-line.

6. Calculate Delta D, which is the difference between D-1 and D-2. Delta D changes by 0.157" for each 1/4".

  • To Change Delta D by 0.10" - 0.25" Use 1/4" Shim
  • To Change Delta D by 0.25" - 0.40" Use 1/2" Shim
  • To Change Delta D by 0.40" - 0.55" Use 3/4" Shim

UnitEA
HazardousNo
OversizeNo
Weight0.009 kg
Manufacturer
Manufacturer P/N
GTIN
Core ChargeYes (add to cart to see price)
110V deviceYes
