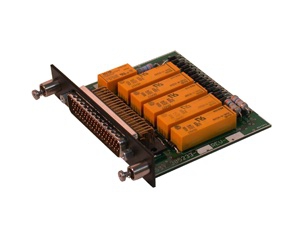

Sandia Sr 54-1 20 Pole Relay Switching Unit

The SR54 switching is ideally suited for GPS and other Long Range Navigation Systems that share an HSI/CDI with a VOR/LOC receiver. The twenty poles of switching allow all resolver and steering lines to be switched simultaneously. And the built-in reversionary switching circuitry to ensure VOR/LOC steering is always displayed on the indicator should power be lost or if an ILS frequency is selected in the NAV receiver

• Certification: PMA Pending
• Max Pick up Voltage: 16.8 VDC
• Nominal Coil Impedance: 1440 W Each
• Drop-out voltage (min): 2.4 VDC
• Voltage: 28VDC
• Coil Current: 120 mA Total All Relays
• Max Contact Rating: 2A @ 28VDC Resistive Load
