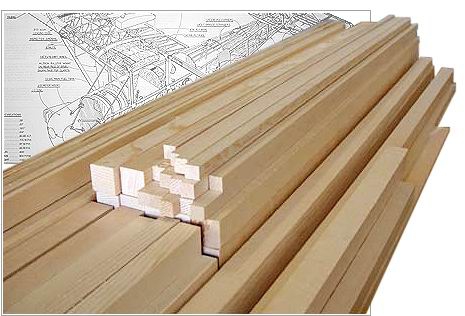

Sauser P6E Spruce Spar Kit

Our spruce kits are designed to encourage the builder to personally produce the components for his aircraft with a minimum of investment in shop equipment. A table saw is an asset, but an aircraft can be built completely with the use of only hand tools.

The complete kits listed below contain all the spruce required for the aircraft. Kits marked ** contain the wing and aileron spars finished to the net dimensions called out in the plans, without beveling. In all other kits the wing and aileron spars are S2S (surfaced two sides) spar stock that is to be cut to the finished pieces. The rib and stringer stock are supplied S2S to the net thickness required and are to be run through a table saw one way to produce the finished pieces. One board 1/4" thick x nominal 6" wide will yield about 16 pieces of finished 1/4 x 1/4 capstrip. Without the use of a table saw, the builder should order only a Spar Kit, which includes the wing and aileron spars finished to net dimensions (unbeveled), then order the capstrip and milled stock as needed. No plywood, glue, nails or other supplies are included in our spruce kits. All materials must be ordered individually as priced in this catalog. Spruce kits are well packed, shipped by truck and insured for value by the carrier. Export orders are solicited. Prompt and efficient handling is assured. Since all spruce is milled to individual requirements and cannot be stocked in finished condition, payment in full is requested with order. Our spruce kits are produced from materials lists which are believed to be accurate. However, since designers may modify certain dimensions after the original plans are released, we urge the builder to verify sizes and current price before ordering.
