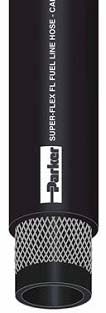

Super Flex Fuel Line Hose 5/16

ID (in.) 5/16
ID (mm) 7.9
Reinf. Braids 1
OD (in.) .0562
OD (mm) 14.3
Approx. wt.per 100 ft. 11.3
Min. Bend Radius -
Max Rec. WP 100

Parker's fuel line hose includes a new thermoplastic barrier that helps protect our atmosphere from harmful hydrocarbons that escape through the carcass of ordinary fuel hose. This new hose surpasses all of CARB's stringent permeation requirements and is similar to SAE30R7 specifications. The Super-Flex FL hose also features an abrasion and weather resistant cover to help protect from external application abuse.
Approved for biodiesel fuels that meet ASTM D 6751 requirements per UL guidelines for Biodiesel compatibility.
4:1 Design factor

• Tube: NBR with a thermoplastic barrier
• Cover: Black Hypalon
• Reinforcement: Braided Polyester
• Temperature Range: -30°F to +257°F (-34°C to +125°C)
