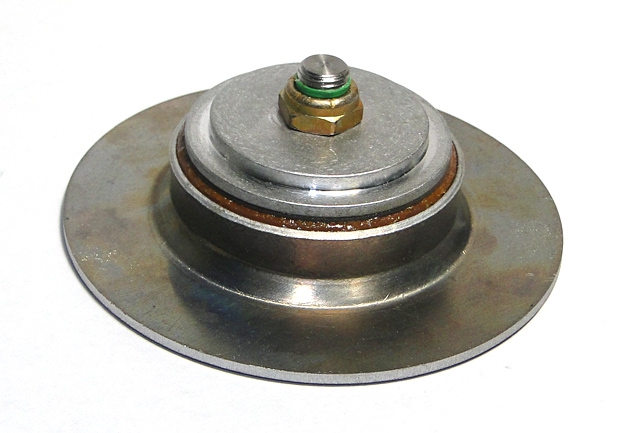

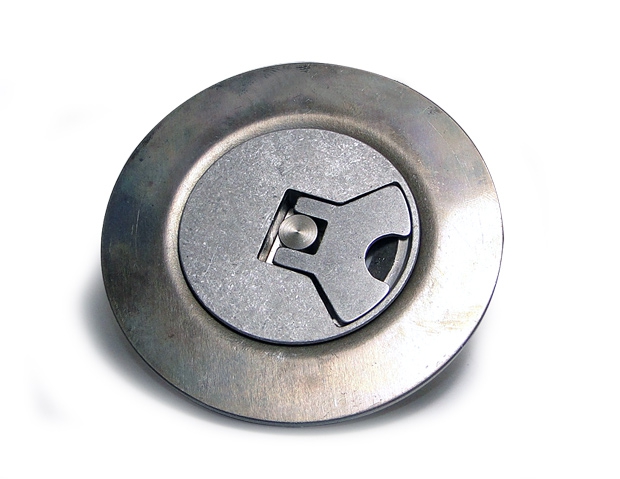

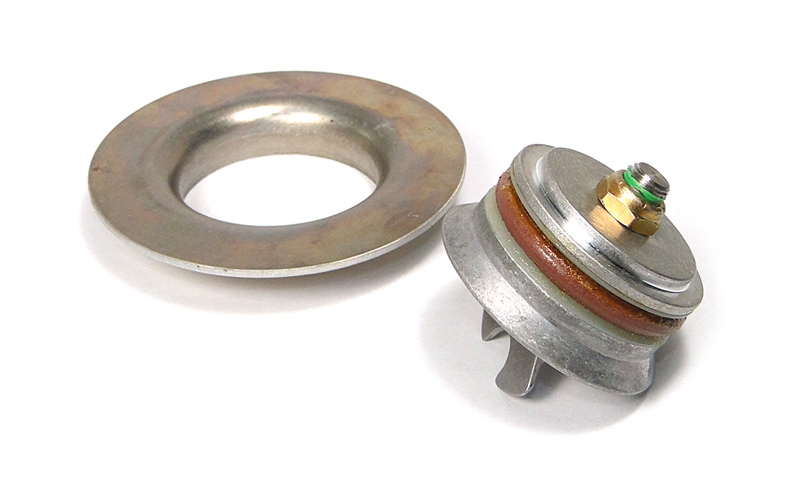

UD-3-F Fuel Cap With Flat Adaptor
| Part number: | 05-01061 |
Description:
The UD-3 flush fuel cap assembly is an unvented cap similar in design to the #5 style cap. The aluminum mounting ring has a 2" dia. opening and an overall dia. of 3-3/4 inch. It may be riveted, bolted or molded to the tank. It is currently used on many popular homebuilts such as the RVs, Lancair, Velocity & White Lightning. Specify flat or contoured adapter.
Q+A
Which O-ring shall be used with 05-01061? Thanks
You can use either 05-02146 (USHER O-RING 2-325 LARGE) or 05-02147 (USHER O-RING 2-012 SMALL).
What is functional difference of large and small O-rings? Thanks

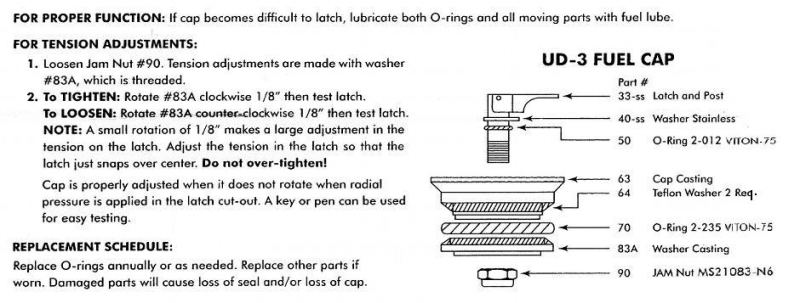

There is no functional difference. They are used in two different spots of the fuel cap. Both should be replaced annually or as needed. Please see the "Tech Sheet" tab for complete details of where each is used.
What type of allow is the flange of these Usher fuel caps made of?
Per the supplier: It is 6061 alloy.
| Unit | EA |
| Hazardous | No |
| Oversize | No |
| Weight | 0.227 kg |
| Manufacturer | |
| Manufacturer P/N | |
| GTIN | |
| Core Charge | Yes (add to cart to see price) |
| 110V device | Yes |
