Volmer Sprtsmn Spruce Kit

Part number: 02-06000
Volmer Sprtsmn Spruce Kit
7323.71 EUR
incl. 19% VAT, excl. shipping
KI
Delivery in 13 days
Expected shipping date is Wednesday 08 January if you order before 16:00 Wednesday 01 January. This information is valid for up to 744 KI
Available Quantities:
In 13 days:744 KI
Oversize
Description:

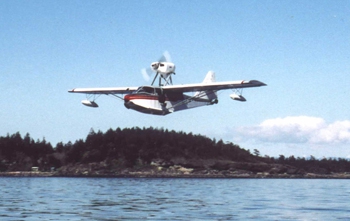

The Volmer VJ-22 "Sportsman" is a two-place, side by side, closed cabin, highwing monoplane, amphibious flying boat. The original Sportsman was completed December 1958. The rigid, corrosion proof hull is made of 1/16 inch and 3/32 inch aircraft mahogany plywood with 1/4 inch plywood at the step for maximum strength and covered with fiberglass for added protection. Numerous testing from calm water to five foot swells in the open sea have proven the design to be both extremely airworthy and seaworthy. Wings are wood spar and ribs, fabric covered. It takes off from water at sea level in about 20 seconds. The VJ-22 is powered by a Continental C-85, starter and gen. It has a cruising speed of 85 mph and stalls at 45 mph.

Specifications

  • Number of Seats: 2
  • Building Materials: W, FG, F
  • Building Time: ~2800 Hours
  • Standard Engine: Continental C-85 / 100 HP
  • Horsepower: 85-100 HP
  • Wing Span: 36.5'
  • Wing Aera: 180 sq ft
  • Empty Weight: 1000 lbs
  • Gross Weight: 1500 lbs
  • Takeoff Distance: 350'
  • Landing Distance: 500'
  • Cruise Speed: 100 mph
  • Top Speed: 125 mph
  • Fuel Capacity: 20 Gallons
  • Range: 320 miles
Item Part Number Description
Qty in Kit
1 02-18100 TRIANGULAR CORNER BLOCKING 5/8" 24
2 02-14800 CAPSTRIP 1/2" X 3/4" 160
3 02-7878 CAPSTRIP 7/8" X 7/8" 28
4 02-341 CAPSTRIP 3/4" X 1" 13
5 02-58114 CAPSTRIP 5/8" X 1-1/4" 20
6 02-5164 SPRUCE 5/16 X NOM 4 4
7 02-126 SPRUCE 1/2 X NOM 6 6
8 02-13166 SPRUCE 13/16 X NOM 6 27
9 02-13164 SPRUCE 13/16 X NOM 4 8
10 02-11300 CAPSTRIP 1/4" X 1/4" 24
11 02-3838 CAPSTRIP 3/8" X 3/8" 10
12 02-12000 CAPSTRIP 1/2" X 1/2" 150
13 02-1258 CAPSTRIP 1/2" X 5/8" 50
14 02-1278 CAPSTRIP 1/2" X 7/8" 180
15 02-121 CAPSTRIP 1/2" X 1" 90
16 02-12112 CAPSTRIP 1/2" X 1-1/2" 14
17 02-122 CAPSTRIP 1/2" X 2" 24
18 02-3434 CAPSTRIP 3/4" X 3/4" 24
19 02-5834 CAPSTRIP 5/8" X 3/4" 10
20 02-3478 CAPSTRIP 3/4" X 7/8" 20
21 02-34134 CAPSTRIP 3/4" X 1-3/4" 4
22 02-7878 CAPSTRIP 7/8" X 7/8" 70
23 02-781 CAPSTRIP 7/8" X 1" 15
24 02-78112 CAPSTRIP 7/8" X 1-1/2" 15
25 02-118114 SPRUCE SPAR 1-1/8" X 1-1/4" 1
UnitKI
HazardousNo
OversizeYes
Weight54.026 kg
